ViewMultiList_t Struct Reference

ViewMultiList_t - struct to hold information for the listview. More...

#include <xmultilistview.h>

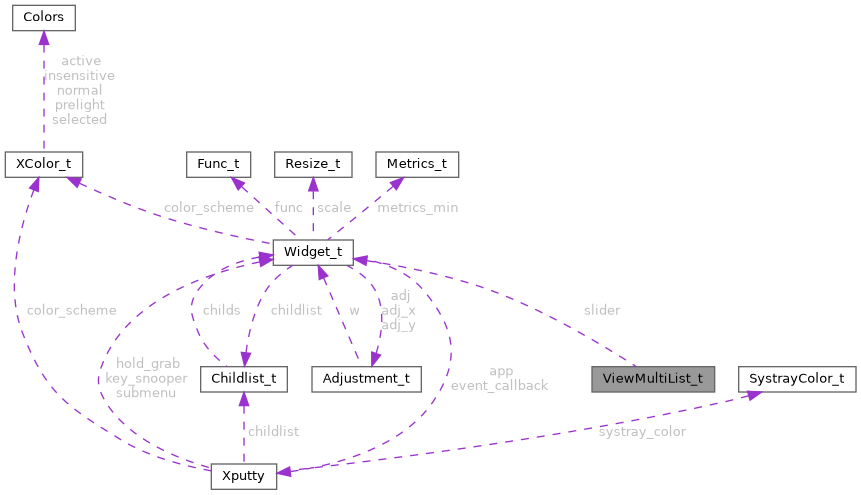

Collaboration diagram for ViewMultiList_t:
Collaboration graph
[legend]

Data Fields

char ** list_names

char * tooltip_text

Widget_t * slider

cairo_surface_t * folder

cairo_surface_t * folder_select

cairo_surface_t * file

cairo_surface_t * folder_scaled

cairo_surface_t * folder_select_scaled

cairo_surface_t * file_scaled

float scale_down

float scale_up

int icon_pos

int prelight_item

int active_item

int prev_prelight_item

int prev_active_item

int show_items

int item_height

int item_width

int list_size

int column

int check_dir

char pad [4]


Detailed Description

ViewMultiList_t - struct to hold information for the listview.

Parameters
prelight_item- the list item which has the focus
active_item- the list item which is selected(active)
show_items- the viewable amount of list items
list_size- total amount of list items in list
check_dir- check if list item is a directory
**list_names- the list entrys

Definition at line 42 of file xmultilistview.h.

Field Documentation

◆ active_item

int active_item

Definition at line 56 of file xmultilistview.h.

Referenced by _draw_multi_list(), _multi_list_entry_released(), _update_view(), multi_listview_set_active_entry(), and multi_listview_unset_active_entry().

◆ check_dir

int check_dir

Definition at line 64 of file xmultilistview.h.

Referenced by _draw_multi_list(), _update_view(), create_multi_listview_viewport(), and multi_listview_set_check_dir().

◆ column

int column

Definition at line 63 of file xmultilistview.h.

Referenced by _draw_multi_list(), _multi_list_entry_double_clicked(), _multi_list_motion(), _reconfigure_multi_listview_viewport(), _update_view(), and add_multi_listview().

◆ file

cairo_surface_t* file

Definition at line 48 of file xmultilistview.h.

Referenced by add_multi_listview(), multi_listview_mem_free(), and multi_listview_set_item_size().

◆ file_scaled

cairo_surface_t* file_scaled

Definition at line 51 of file xmultilistview.h.

Referenced by _draw_multi_list(), _update_view(), add_multi_listview(), multi_listview_mem_free(), and multi_listview_set_item_size().

◆ folder

cairo_surface_t* folder

Definition at line 46 of file xmultilistview.h.

Referenced by add_multi_listview(), multi_listview_mem_free(), and multi_listview_set_item_size().

◆ folder_scaled

cairo_surface_t* folder_scaled

Definition at line 49 of file xmultilistview.h.

Referenced by _draw_multi_list(), _update_view(), add_multi_listview(), multi_listview_mem_free(), and multi_listview_set_item_size().

◆ folder_select

cairo_surface_t* folder_select

Definition at line 47 of file xmultilistview.h.

Referenced by add_multi_listview(), multi_listview_mem_free(), and multi_listview_set_item_size().

◆ folder_select_scaled

cairo_surface_t* folder_select_scaled

Definition at line 50 of file xmultilistview.h.

Referenced by _update_view(), add_multi_listview(), multi_listview_mem_free(), and multi_listview_set_item_size().

◆ icon_pos

int icon_pos

Definition at line 54 of file xmultilistview.h.

Referenced by _draw_multi_list(), _reconfigure_multi_listview_viewport(), _update_view(), and add_multi_listview().

◆ item_height

int item_height

Definition at line 60 of file xmultilistview.h.

Referenced by _draw_multi_list(), _multi_list_entry_double_clicked(), _multi_list_entry_released(), _multi_list_key_pressed(), _multi_list_motion(), _reconfigure_multi_listview_viewport(), _update_view(), add_multi_listview(), multi_listview_remove_list(), multi_listview_set_item_size(), and scale_image().

◆ item_width

int item_width

Definition at line 61 of file xmultilistview.h.

Referenced by _draw_multi_list(), _multi_list_motion(), _reconfigure_multi_listview_viewport(), _update_view(), add_multi_listview(), multi_listview_set_item_size(), and scale_image().

◆ list_names

char** list_names

Definition at line 43 of file xmultilistview.h.

Referenced by _draw_multi_list(), _update_view(), multi_listview_remove_list(), and multi_listview_set_list().

◆ list_size

int list_size

Definition at line 62 of file xmultilistview.h.

Referenced by _draw_multi_list(), _draw_multi_listviewslider(), _multi_list_entry_double_clicked(), _multi_list_entry_released(), _reconfigure_multi_listview_viewport(), _update_view(), multi_listview_remove_list(), and multi_listview_set_list().

◆ pad

char pad[4]

Definition at line 65 of file xmultilistview.h.

◆ prelight_item

int prelight_item

Definition at line 55 of file xmultilistview.h.

Referenced by _draw_multi_list(), _leave_multi_list(), _multi_list_entry_released(), _multi_list_key_pressed(), _multi_list_motion(), _update_view(), and multi_listview_unset_active_entry().

◆ prev_active_item

int prev_active_item

Definition at line 58 of file xmultilistview.h.

◆ prev_prelight_item

int prev_prelight_item

Definition at line 57 of file xmultilistview.h.

Referenced by _multi_list_motion(), and _update_view().

◆ scale_down

float scale_down

Definition at line 52 of file xmultilistview.h.

Referenced by _draw_multi_list(), _update_view(), add_multi_listview(), multi_listview_set_item_size(), multi_listview_set_list(), and scale_image().

◆ scale_up

float scale_up

Definition at line 53 of file xmultilistview.h.

Referenced by _reconfigure_multi_listview_viewport(), add_multi_listview(), multi_listview_set_item_size(), and scale_image().

◆ show_items

int show_items

Definition at line 59 of file xmultilistview.h.

Referenced by _draw_multi_list(), _draw_multi_listviewslider(), _reconfigure_multi_listview_viewport(), _update_view(), and create_multi_listview_viewport().

◆ slider

Widget_t* slider

Definition at line 45 of file xmultilistview.h.

Referenced by _reconfigure_multi_listview_viewport(), _set_multi_listview_viewpoint(), add_multi_listview(), and multi_listview_remove_list().

◆ tooltip_text

char* tooltip_text

Definition at line 44 of file xmultilistview.h.

Referenced by _draw_multi_list(), add_multi_listview(), and multi_listview_mem_free().

The documentation for this struct was generated from the following file:
